Centrifugal Pump Test Rig

Centrifugal Pump Test Rig

Get a Price/Quote

Product Details:

  • Equipment Materials Stainless Steel tanks
  • Power 30 +/- 10 VAC, 50 Hz, single phase Watt (w)
  • Voltage 220 V AC Watt (w)
  • Material S.S
  • Application Lab Equipment
  • Click to view more
Ask A Question Send Inquiry
X

Price And Quantity

Product Specifications

  • Stainless Steel tanks
  • S.S
  • 30 +/- 10 VAC, 50 Hz, single phase Watt (w)
  • Lab Equipment
  • 220 V AC Watt (w)

Product Description

Over the years, we have been engaged in providing wide variety of Centrifugal Pump Test Rig that is designed to study the performance of centrifugal pump. This rig is manufactured under the stern supervision of our dexterous professionals using superior grade components and sophisticated technology in tandem with international quality standards. In order to ensure its quality and durability, the provided Centrifugal Pump Test Rig is available at nominal rates to the clients.

Features:

  • Closed loop water circulation

  • Compact & stand alone set up

  • Stainless Steel tanks

  • Superb Painted structure

  • Simple to operate & maintain

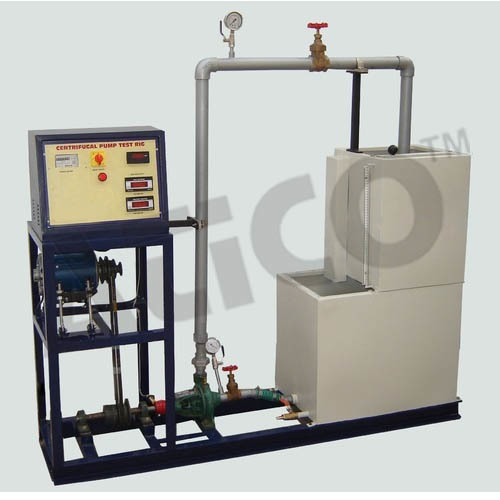

Set up consists of a centrifugal pump coupled with electrical motor, supply tank, measuring tank & pipe fittings for closed loop water circulation. Pressure and Vacuum gauges are connected on delivery and suction side of pump for the purpose of measurement.

The flow rate of water is measured using measuring tank and stop watch provided.

EXPERIMENTS:

To determine overall efficiency and pump efficiency of the centrifugal pump.

To plot Head vs. Discharge, Pump efficiency vs. Discharge

UTILITIES REQUIRED:

Electric supply             Provide 230 +/- 10 VAC, 50 Hz, single phase electric supply with proper earthing. (Neutral Earthvoltage  less than 5 VAC.) 5A, three pin socket with switch for pump.

Water supply                     Tap water connection, Distilled water @ 80 liters (optional)

TECHNICAL DETAILS:

Product Centrifugal Pump Test Rig

Product code HML-01

Pump Capacity 1 HP Speed 2800 RPM (max.), Head 12m(max.)

Drive AC : AC motor with step cone pulley arrangement for 3 prefixed speed

        DC : DC motor with DC drive along with non-contact type digital RPM indicator

Supply Tank Capacity 120 Ltrs. MOC SS

Measuring Tank Capacity 75 Ltrs. MOC SS fitted with Piezometer Tube & scale

Piping GI / PVC

Stop Watch Electronic

Control Panel With required electrical instrumentation

Overall Dimensions
