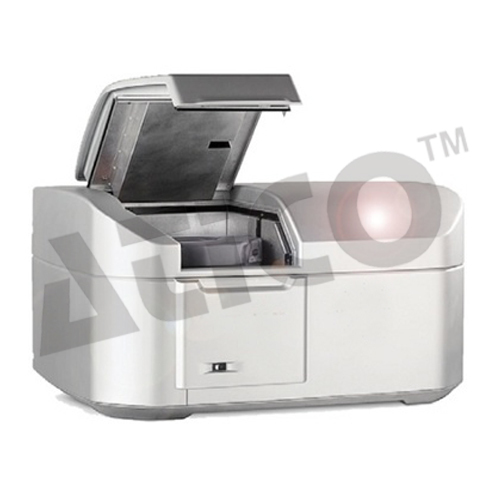

Microarray Scanner

Dynamic AutoFocus

Continually adjusts scanner's focus, keeping features in focus at all times

Resolution

2, 3, 5, and 10 microns

Autoloader

24-slide cassette allows for hands-off operation

Integrated Barcode Reader

Reads code 128 (A,B,C), Code 39, Code 93, and CODABAR

Compatible Dyes

Cyanine 3 and Cyanine 5, and Alexa 647, 555, and 660

Scan Window Maximum

71 mm x 21.6 mm

PMT Adjustment

Automatic PMT gain calibration before each run

Allows adjustment of signal levels from 100% (default) to 1%

Detection Limit

0.01 chromophores per square micron

Pixel Placement Error

1 pixel @ 5 micron resolution

Uniformity

5% CV global non-uniformity; average local non-uniformity is  typically 1% based on 100 micron features

Scan time

Two-color simultaneous data acquisition in 16 minutes per for 3-micron scans and 24 minutes for 2-micron scans (scan region of 61 mm x 21.6 mm)

Data Workstation and Operating System

PC-based with Windows® 7 – 64 bit

Approximate Scanner Dimensions

Height: 16.5” (42 cm), Width: 17” (43 cm); Depth: 26” (67 cm)

Weight

Scanner: 125 lbs (56.8 kg)

Power Input

100 – 240 VAC, 50 - 60 Hz, 250 VA max.

Fuses

Two power supply fuses: T4A, 250 VAC

Humidity

Operating: 15% to 85% RH at 30°C

Altitude

Operating maximum: 2,300 m (7,500 ft)

Operating Temperature Range

15°C to 30°C
